Description

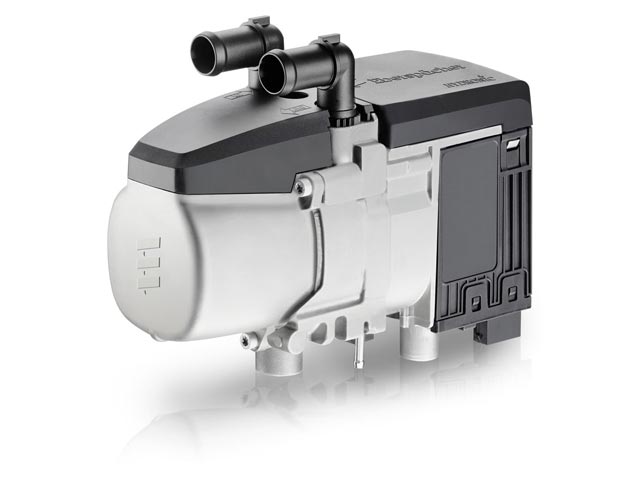

The CAN/switching plus version of the Hydronic S3 Economy is the direct successor to the previous CAN/LIN version and is compatible with the Eberspächer EasyStart CAN-bus-compatible control unit family that will be available.
The new switching plus input also ensures compatibility with all other control units that output an S+ switch-on signal. The new Hydronic S3 Commercial rounds off the product family with a 24-volt version for commercial applications. It will also be available in a 5.6 kW Power version for commercial applications for the first time, making it unrivaled on the market.
Advantages ¹⁾:
- Interfaces: CAN and S++
- Economy: service life 3,000 h
- Commercial: service life 5,000 h
- Compatibility with all new and many conventional control units
- New 24-volt heater for commercial applications
- NEW: Power version with 5.6 kW heating performance
- Very large output range
- Utilization of residual heat through heating circuit run-on control
- Stepless heating performance control
- Noise emissions optimized
Additional features ¹⁾:
- Economy: gasoline (also E10) and diesel (also B30)
Commercial: diesel (also B30) - Diagnostic display via EasyStart TP 7.1 control units, as well as via EasyStart CAN-based control units
- Economy: suitable for altitudes up to 1,500 m above sea level; altitude adjustment can be activated manually
above 1,500 m with EasyStart Pro
Commercial: automatic altitude adjustment up to 3,000 m above sea level - Connection diameters: water 20 mm, exhaust gas 24 mm, combustion air 20 mm
- ADR compatible with EasyStart Pro (with “Commercial” version)
¹⁾ The actual scope of functions depends on the respective application. Please contact your workshop for further details.
